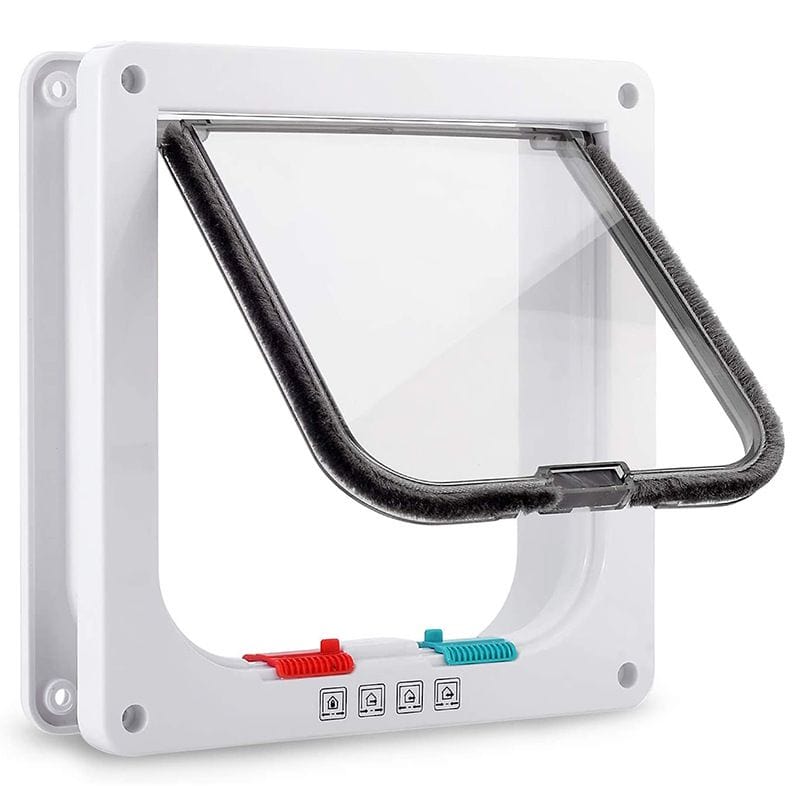

Cat Door Flap pet hole dog door two-way free access doorway installation glass wooden door

Cat Door Flap pet hole dog door two-way free access doorway installation glass wooden door

Details

Product grammage Single product package size

S: 280g 21*21*3cm

M: 350g 21.5*21*6.5cm

L-Thin: 380g 26.5*24.5*3cm

L: 480g 26.5*24.5*6.5cm

XL-Thin: 540g 28.5*25*3cm

XL: 560g 28.5*25*5.7cm

Product size:

S: outer frame 19.7*19*2cm inner frame 17*16*2cm

M: outer frame 19.7 * 19 * 5.3cm inner frame 17 * 16 * 5cm

L-Thin: outer frame 25*23.5*2cm inner frame 21*19.5*2cm
L: outer frame 25 * 23.5 * 5.3cm inner frame 21 * 19.5 * 5cm

XL-Thin: outer frame 28*25*2cm inner frame: 24*21*2cm
XL: outer frame 28*25*5.3cm inner frame 24*21*5cm

Attention:

Thin section of the product is suitable for the following places: suitable for glass doors and windows, plastic storage boxes, screen doors, rolling sliding doors, tin doors, acrylic door panels, etc.

Installation method.

Tools needed: electric drill, hacksaw or chainsaw, measuring tape.

Step1: First use a piece of paper to draw the size of the door cover (there may be a few millimeters of error).

Step2: Draw the paper to get a good comparison on the door, using a pencil to draw a good print.

Step3: Drill a hole in each of the four corners of the door with a drill bit and then start hollowing out the hole directly if you have a chainsaw.

Step4: If it is a glass door, use the glass scribing tool, gently cut open, fixed with glass glue.

Step5: hole panning is good, now get a layer of wood veneer to wrap around the hole, in order to beautiful.

Step6: The cat door on, there are accessories screws, screwed on with a screwdriver.

Step7: screw mouth is also equipped with a screw cover, press on, OK finished!
